200 Filter Housing

200 Filter Housing

£31.80 GBP
£0.00 GBP £31.80 GBP
Sale Sold out
Shipping calculated at checkout.

Headline 200 series aluminium and aluminium/polycarbonate housings are extensively used in the applications where non-corrosive gases are filtered. Housings are available with no drains for particulate removal and with manual drains for coalescing applications.

    • Nitrile seals are standard but others are available:
    • Mounting Brackets are available,

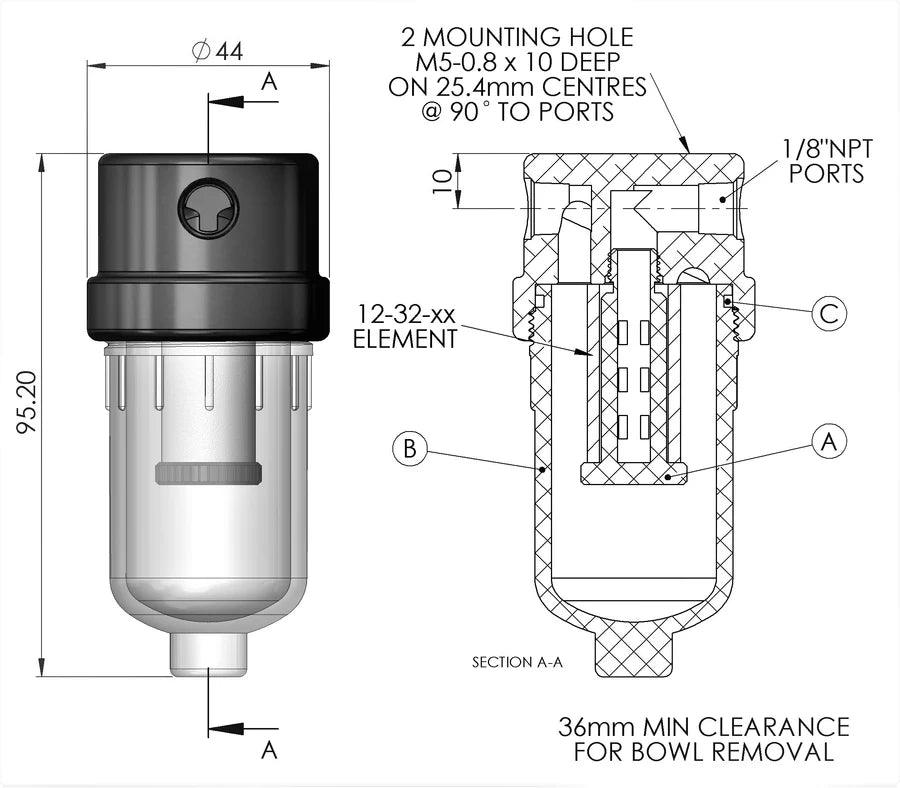

Specifications

Port Size - NPT 1/8"
Drain Size - NPT None
Max. Pressure - Bar 10
Max. Temperature - ºC 50

Filter Element Codes (1)

Disposable Element 12-32-xx
Stainless Steel Element SS-12-32-xx
PTFE Element PT-12-32-xx



(1) Replace ‘xx’ with grade required, e.g. 12-32-50C, SS-12-32-25, PT-12-32-03.
