Headline disposable filter elements are manufactured from precise mixtures of borosilicate glass microfibres, to the very highest standards of quality control. These elements offer exceptional filtration efficiency at very low pressure drops and, being 90+% void volume, give very long service life.
The elements are self-gasketing and easily sealed into the housing by axial compression. The elements are bonded to impart high strength and eliminate fibre shedding. The choice between the different binders available will depend upon the application conditions.
Filter Element Efficiency
Each element type is available in a wide range of grades of efficiency, covering the complete range from coarse bulk contamination removal (grade 80) and the essentially complete removal of submicron particles (grade 40).
Filter Element Dimensions

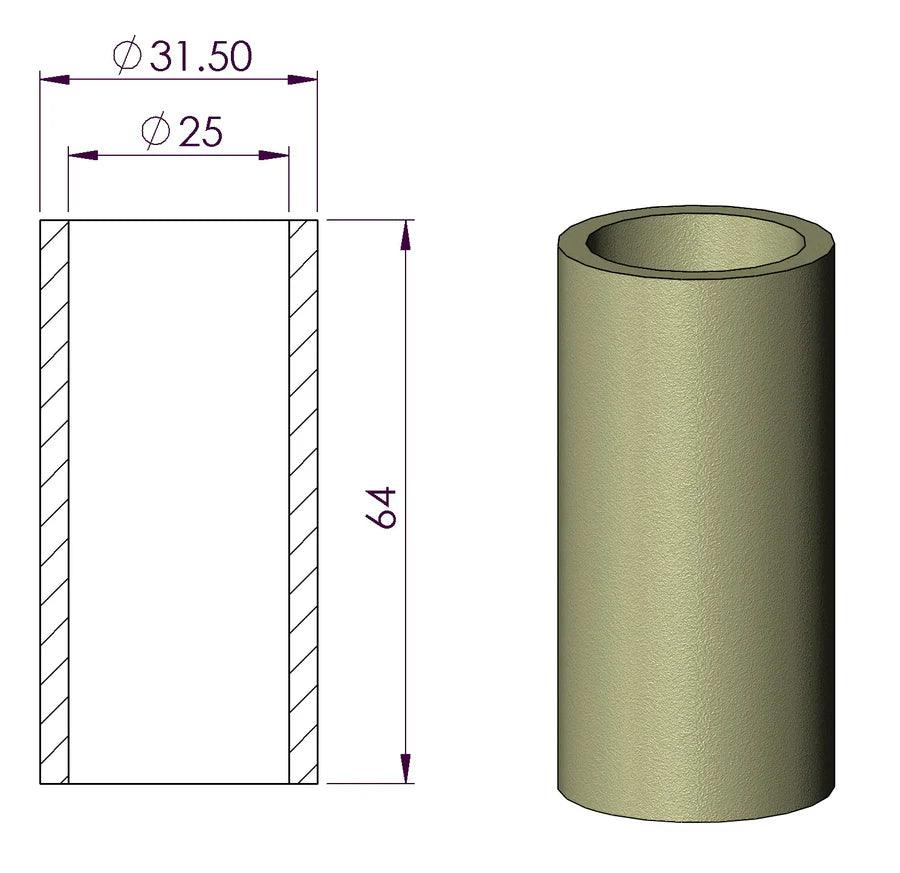

All disposable filter elements have a part number arranged with three figures, e.g. 25-64-70. The first part refers to the inside diameter of the element in millimetres, the second figure refers to the overall length of the element in millimetres and the third part refers to the grade designation. Replace the ‘xx’ in the part numbers with the grade designation.
Specifications
For Removal of
Solid Particulate
Binder Type
L-Type
Max. Temperature - ºC
150
Filtration Efficiency(removal of 0.1 micron particles) - 40
99.9999+%
Filtration Efficiency(removal of 0.1 micron particles) - 50
99.9900+%
Filtration Efficiency(removal of 0.1 micron particles) - 60
99.5000+%
Filtration Efficiency(removal of 0.1 micron particles) - 70
95.0000+%
Filtration Efficiency(removal of 0.1 micron particles) - 80
